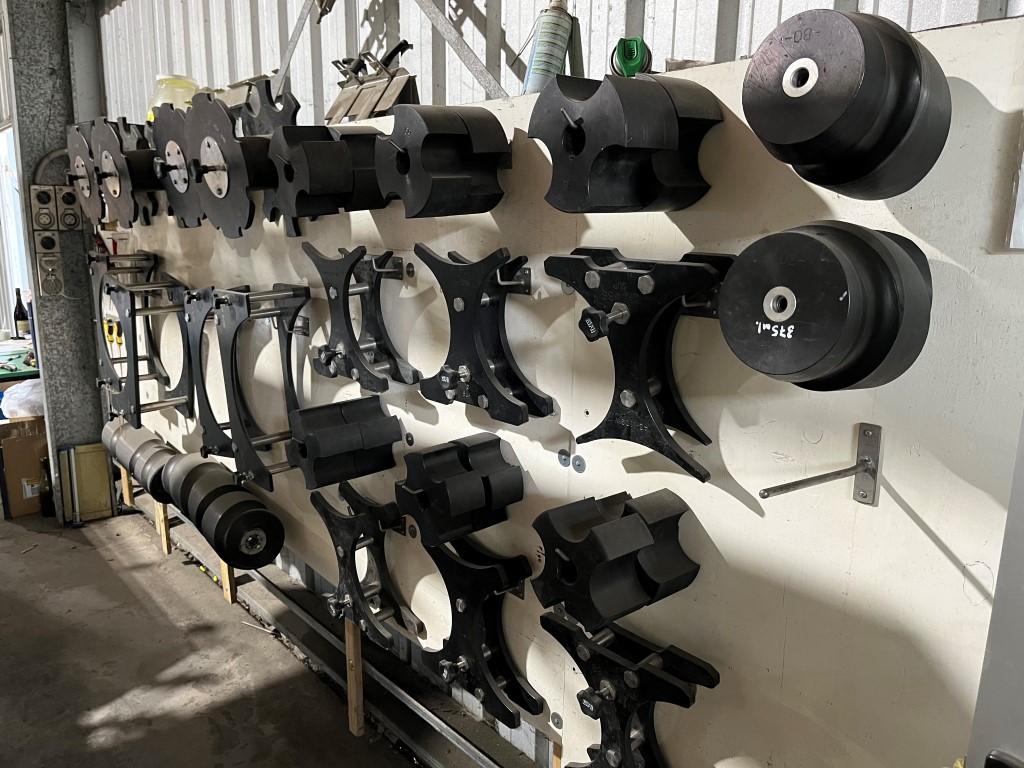

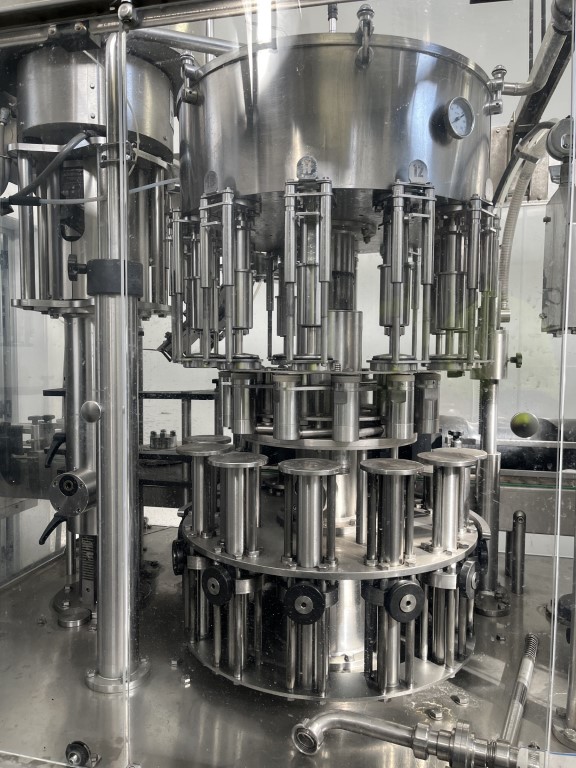

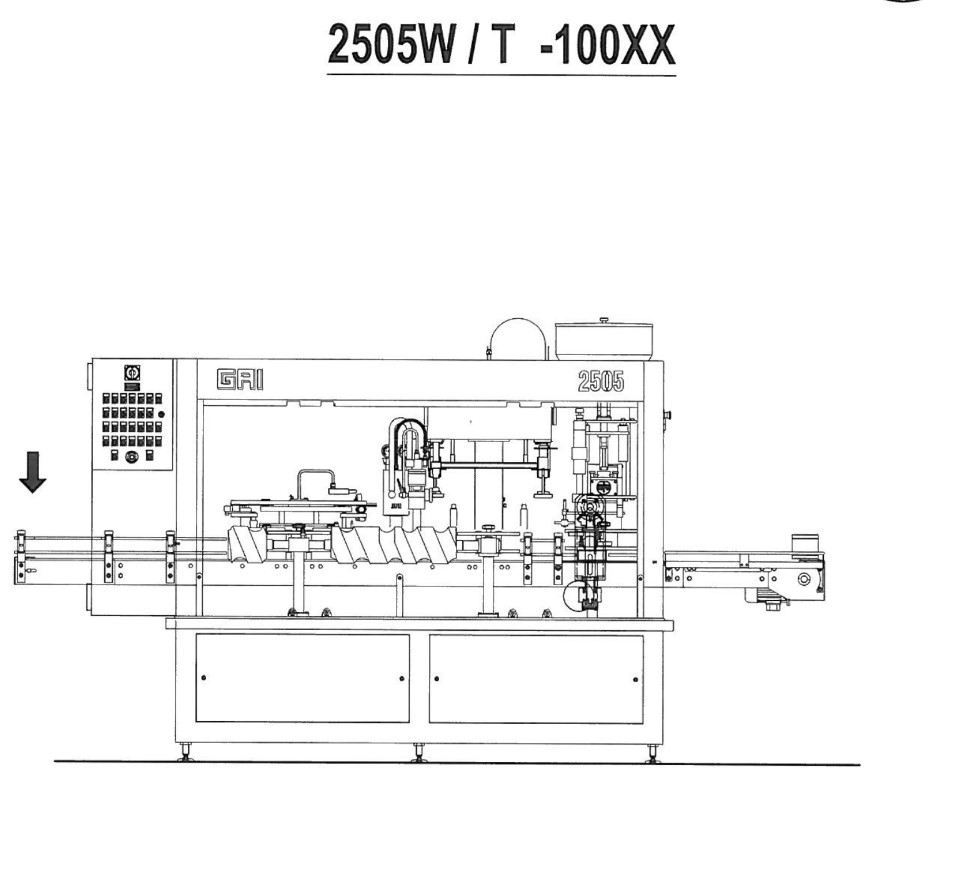

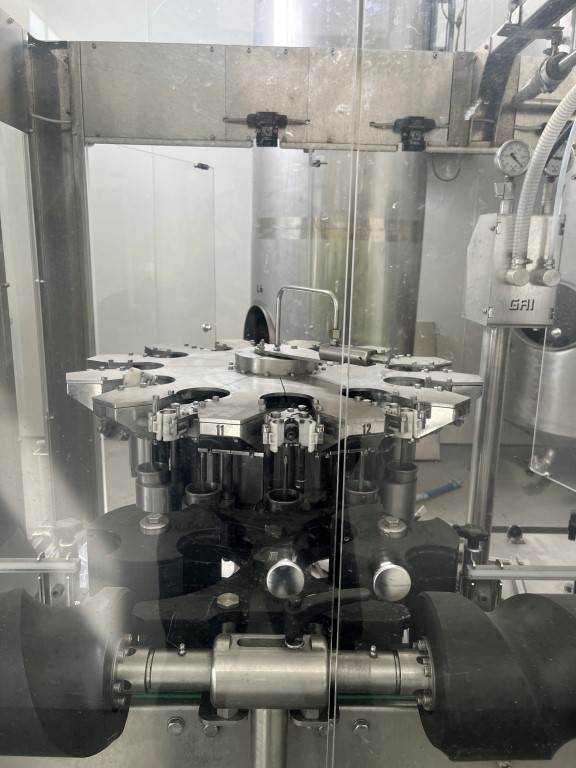

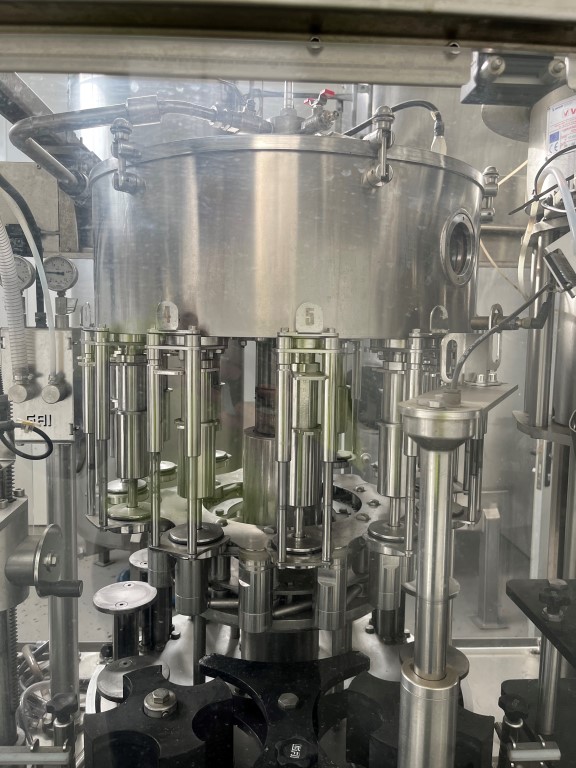

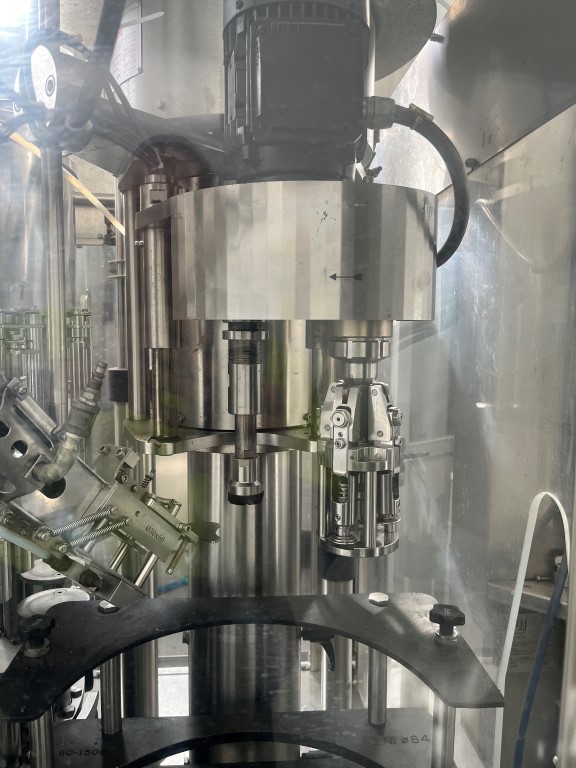

GAI 2505P-4292 Mono Block Filling Line, YOM 2012, has bottle rinser/filler/capper, filler is a 12 head, has water filtration on infeed to the bottle wash (SS 10 inch duel housings, 0.45 and .65um filtration level), ex wine unit which has change parts for 375mls burg and 750 burg / bord and burg prem, approx. 1600-2000 bph, Monoblock alone is approx. 2500mm L x 1200mm W x 2500mm H, with a short infeed conveyor, filters, bottle wash, filler, capper, caposaurus (cap hopper etc.) and short out feed conveyor the overall dimensions are approx. 4500mm L x 1200mm W x 2700mm H. Was installed in a room that was 5m x 6m.
