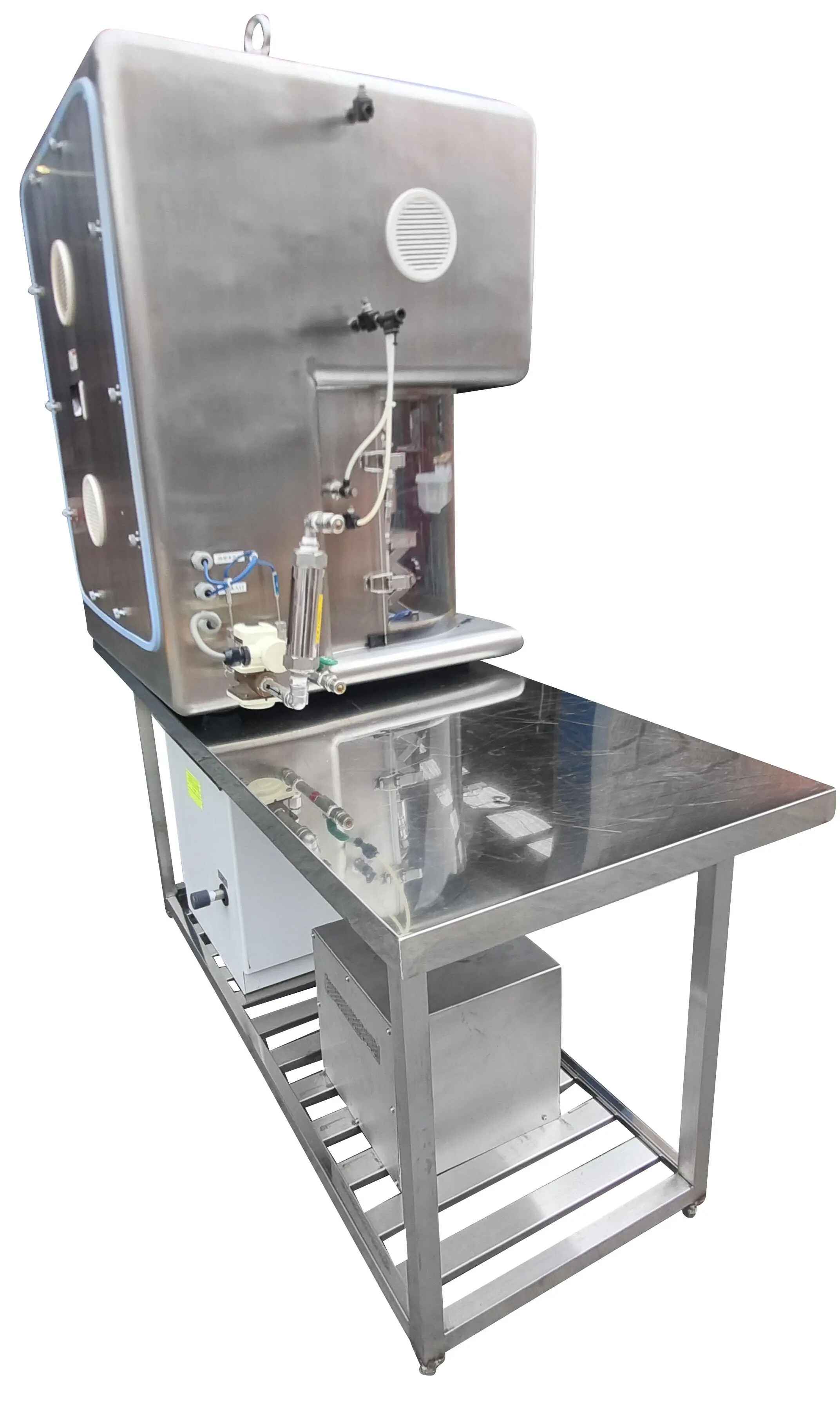

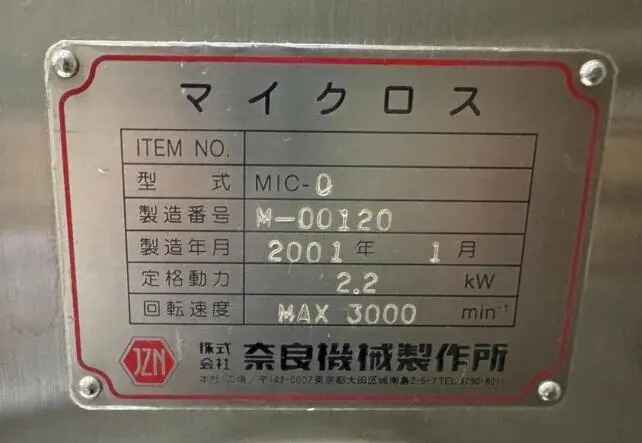

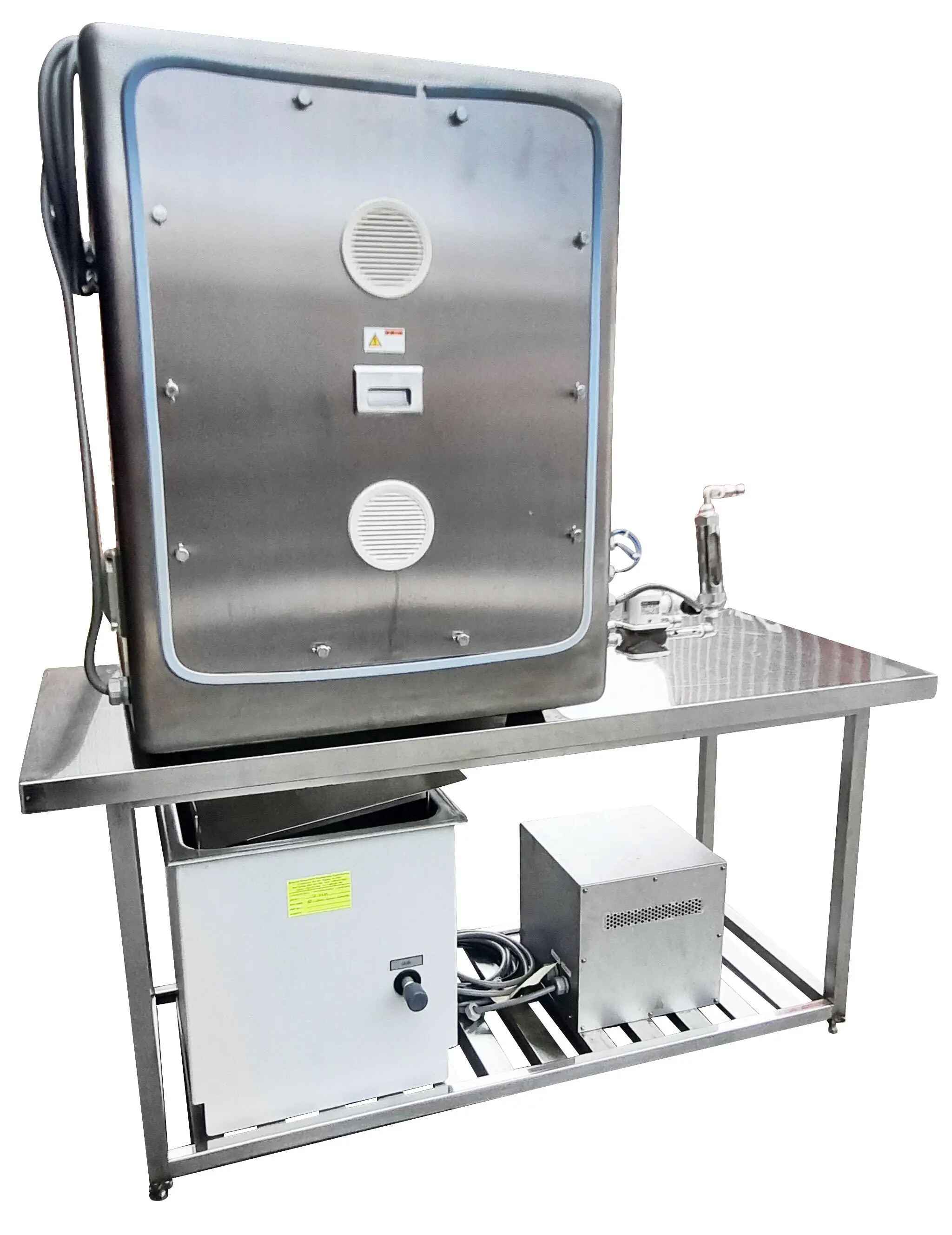

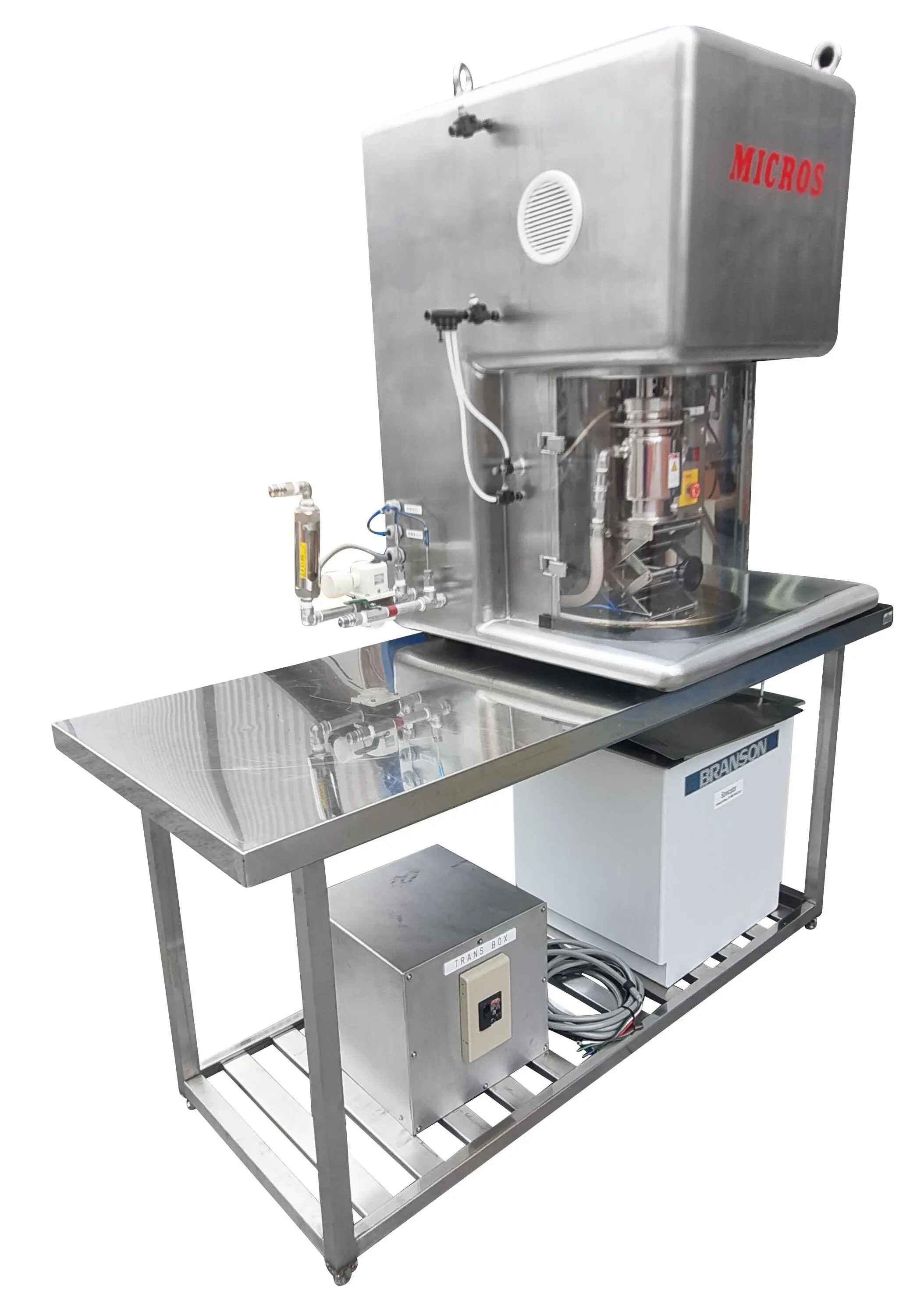

NARA Micros MIC-0 Super Fine Wet Mill, YOM 2001, 3 ph, 2.2kw, 2500rpm, 0.4L effective capacity, total vessel volume 0.74L, operating volume (batch) 0.35L, inside vessel diameter 87mm, pitch circle diameter of sub shaft 63mm, number of sub shafts 6, number of grinding pieces 114. The NARA Micros Super Fine Mill (MIC-0) is a high-performance wet milling machine designed for applications that demand ultra-fine particle sizes and efficient dispersion. Unlike conventional ball mills, the Micros uses a unique milling mechanism based on high impact and shear force generated by milling rings and vessel linings. This enables rapid reduction to single micron and even submicron sizes within 20–30 minutes. Engineered for versatility, the MIC-0 can process high-viscosity slurries, organic solvents, and concentrated pastes while maintaining consistent performance and easy separation of milling media from processed material. Ex site Australia.
Approx. 550mm x 550mm x 850mm.
