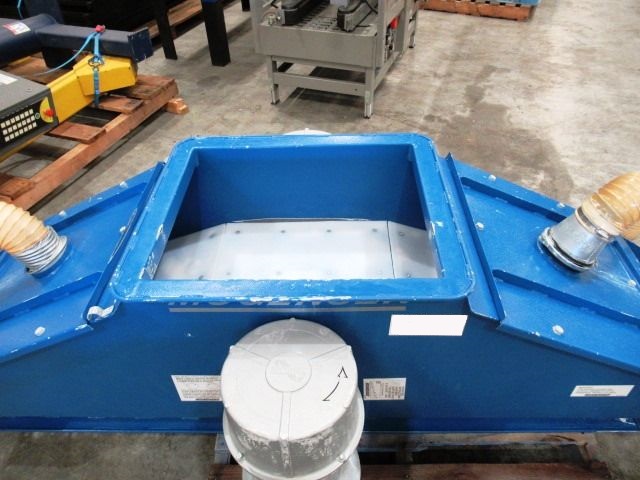

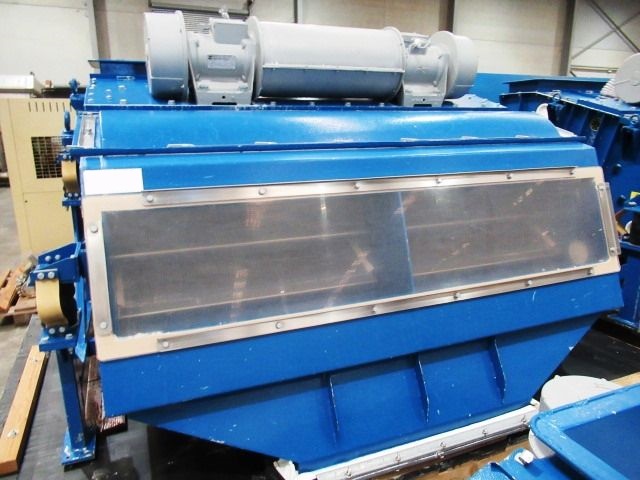

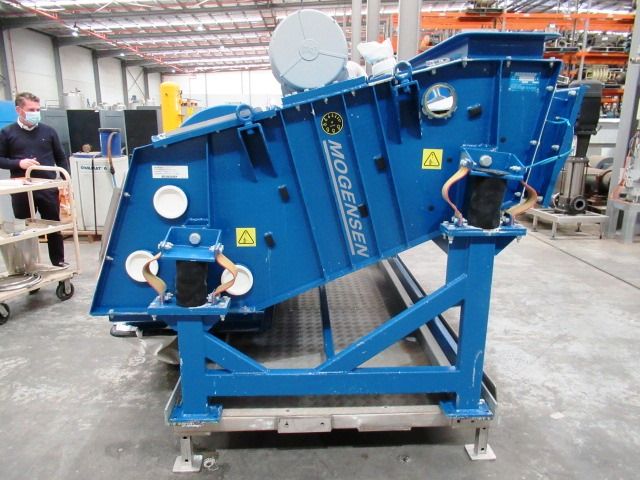

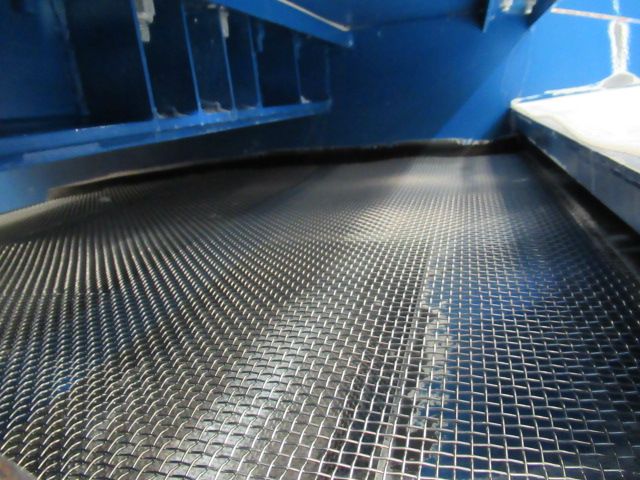

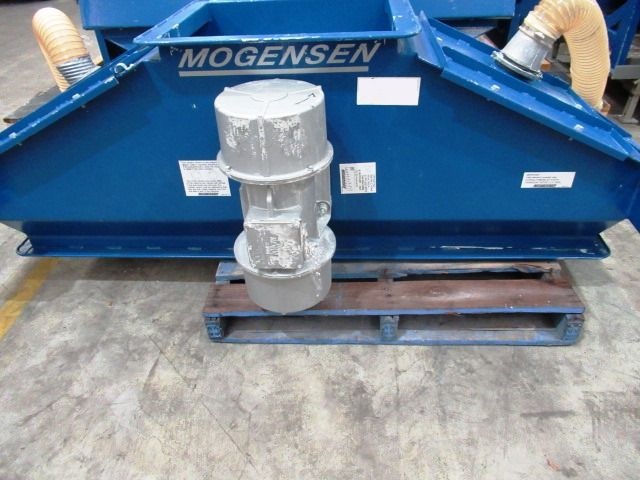

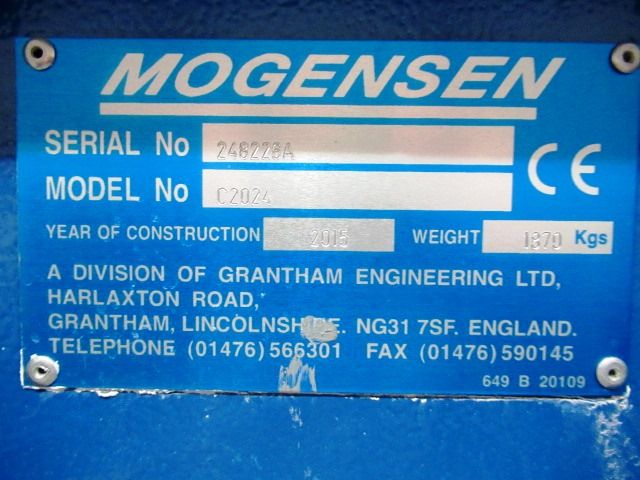

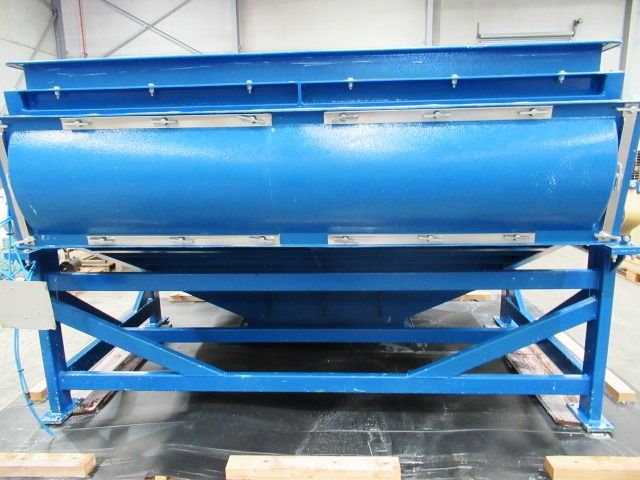

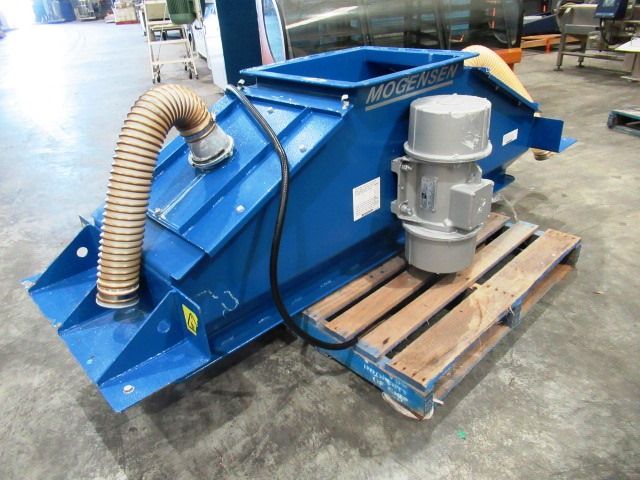

Mogensen C024 Flat Deck Vibratory Screen, YOM 2015, unit is a steel vibratory 2 deck screener sizer machine. The system consists of 1 x Mogensen vibratory product feeder, model no. F2005C. The feeder is driven by 2 x 900 Watt @ 960 RPM, 415V Invicta vibrators, force: 13734(N). Infeed Inlet: 600mm L x 500mm W. Mogensen 2 Deck Screener, material of frame is steel, material of screens is stainless steel, model no. C024, unit is driven by a 2 x 1800 Watt @ 1440 RPM, 415V Invicta vibrators, force: 34335(N). The machine is currently fitted with 1 x approx 5mm aperture and 1 x approx 3.5mm aperture. Overall footprint of screener: 2550mm L x 2350mm W x 1650mm H. Overall footprint of vibratory feeder: 2550mm L x 1030mm W x 770mm H. Ex site Australia.
